Zinc Die Casting Furniture Parts
Introduction
Electrophoresis zinc die casting parts was made for one of our Italian customers. The product is used for furniture. The material that used for zinc die casting furniture parts is zamak #3 (ASTM AG40A) (also known as Zinc Alloy No. 3), which is the most widely used zinc alloy in die casting process and is usually the first choice for zinc die casting for many reasons. The surface finish for our zinc die casting furniture products is electrophoresis.
Features
The required physical and mechanical properties of our products are extremely balanced. It has excellent castability and long-term dimensional stability. Its excellent surface treatment characteristics, suitable for electroplating, spraying and chromate treatment. Compared with die-cast aluminum alloy, our product has excellent shock absorption and damping performance.
Product Specification
Product name | Zinc Die Casting Furniture Parts |
Material | Zamak #3 |
Size (Length*Width*Height) | 5.5*8.5*1cm |
Weight | 70g |
Surface finish | Electrophoresis |
Process | Die Casting - Machining - Deburring - Sand blasting |
Application | Furniture |
Customer | Serial No： | 200615007 | ||||||||||||||||||
Product | Lot No | Alloy And Temper | Dimension （mm） | |||||||||||||||||
Zamak #3 | 60*60*50 | |||||||||||||||||||
Technique Standard | GB/T3880-2012 | Composition Standard | GB/T3190-2008 | |||||||||||||||||
Chemical Composition % | ||||||||||||||||||||
Element | Al | Cu | Fe | Pb | Cd | Sn | Mg | - | Zn | |||||||||||
Standard | 3.5-4.3 | 0.25 | ≤0.1 | ≤0.005 | ≤0.004 | ≤0.003 | 0.02-0.05 | - | Remainder | |||||||||||
Actual | 3.9 | 0.25 | 0.09 | 0.005 | 0.004 | 0.003 | 0.034 | |||||||||||||
Mechanical Property | ||||||||||||||||||||
Sampling | Tensile Strength （MPa） | Yield Strength （MPa） | Elongation （%） | |||||||||||||||||
—— | Standard | Actual | Standard | Actual | Standard | Actual | ||||||||||||||
≥283 | 290 | ≥221 | 230 | ≥10 | 10 | |||||||||||||||
Cup Bulge | —— | —— | 90°bend | |||||||||||||||||
Earing（%） | —— | —— | Hardness | 82HB | ||||||||||||||||
Surface Control | Good | Dimension Control | Meet Standard | |||||||||||||||||
Certificate
 |  |

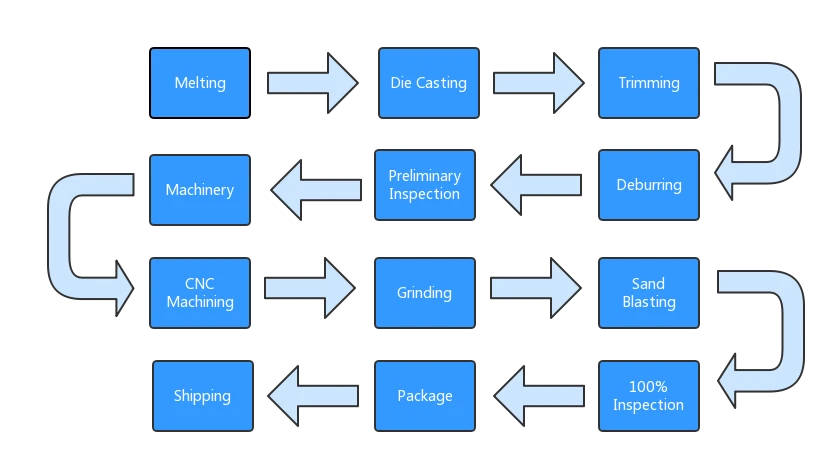

Zinc Die Casting Flow Chart
Package
Zinc die casting furniture parts is packed in bubble bag firstly, then use carton to pack each bubble bag. Finally, we use pallet to pack total cartons. Because of its plating surface finish, the surface will not be destroyed easily. The storage conditions should preferably be a sheltered environment with limited temperature variations and low humidity levels.
 |  |
| Bubble Bag | Carton |
 |
|
Load to Container | Pallet |
Transportation
Zamak #3 alloy die casting parts is sent by sea transport, and it is much cheaper than others, the disadvantage is it has long delivery time. If we just sent some samples to customer to check, we suggest to use express, which is more fast. If the cargo is big and heavy, we suggest to choose air transport or sea transport. The air transport is more fast than sea transport, but the cost much higher than sea transport.
We will choose suitable package to each product. We can pack the cargo according to customers requirement if customers have their demand, . We can also help customers to consult the freight cost with our forwarder, then the customers can compare the price with their forwarders.
Express
 |  |  |
 |  |  |
| Sea transport | Air transport |
 |  |
FAQ
1. Q: Why choose zinc alloy? / Advantage of zinc alloy?
A:
----For die casting process, zinc alloy has good fluidity and corrosion resistance, and is suitable for die-casting instruments and auto parts shells.
----Zinc alloy of also suit for making furniture parts, such as zinc die casting handles, zinc die casting knobs, zinc die casting hinges, zinc die casting faucet, zinc die casting pot, zinc die casting panel nuts, zinc die casting housing, zinc die casting light housing, zinc die casting lighting fixture, zinc die casting luminaire.
2. Q: What is the difference between zinc alloy and aluminum alloy?
A:
1. Character:
Zinc alloy: It is an alloy composed of other elements based on zinc.
Aluminum alloy: It is the most widely used non-ferrous metal structure material in the industry.
2. Features:
Zinc alloy: The alloying elements often added are aluminum, copper, magnesium, cadmium, lead, titanium and other low-temperature zinc alloys. Zinc alloy has a low melting point, good fluidity, easy to weld, braze and plastic process, corrosion resistance in the atmosphere, and easy recycling and remelting of residual waste; but low creep strength, easy to cause dimensional changes due to natural aging. Prepared by melting method, die-casting or pressure-processed into material.
Aluminum alloy: Aluminum alloy has low density, but relatively high strength, close to or exceeds high-quality steel, good plasticity, can be processed into various profiles, has excellent electrical conductivity, thermal conductivity and corrosion resistance, and is widely used in industry. Second to steel.
3. Process:
The melting temperature of the two alloys is different during processing. The temperature of zinc alloy is more than 400 degrees, and that of aluminum alloy is more than 700 degrees.
The processing equipment is different, although they are all called die-casting machines, they are not universal at all.
The processing technology and parameters are different.
4. Mechanical properties:
Zinc alloy hardness 65-140, tensile strength 260-440.
Aluminum alloy hardness 45-90, tensile strength 120-290.
The overall zinc alloy has higher hardness and higher tensile strength than aluminum alloy.
3. Q: What is the difference between electrophoresis and powder coating?
A:
----Principle
Powder coating zinc die casting parts: The plastic powder is charged through a high-voltage electrostatic device, and the paint is sprayed on the surface of the parts under the action of an electric field. The powder will be uniformly absorbed on the surface of the parts to form a powder coating; and the powder coating undergoes high temperature After baking, it will be leveled and solidified, and the plastic particles will melt into a dense final protective coating with different effects; firmly adhere to the surface of the parts.
Electrophoresis zinc die casting parts: Immersing the conductive substrate in an electrophoretic paint tank filled with water and diluted with a relatively low concentration as the anode (or cathode), and set a corresponding cathode (or anode) in the tank, which is indirect between the two poles. After applying direct current for a period of time, a uniform and dense coating film that is not dissolved by water will be deposited on the surface of the coating.
----Features
Powder coating zinc die casting parts: No thinner material is needed, construction does not pollute the environment, and is non-toxic to the human body; the coating has excellent appearance quality, strong adhesion and mechanical strength; spraying construction has a short curing time; the coating has a much higher corrosion resistance and abrasion resistance; no need Primer; simple construction, low technical requirements for workers; lower cost than painting process;
Electrophoresis zinc die casting parts: It has low pollution, energy saving, resource saving, starting protection and corrosion resistance. It has the characteristics of smooth coating, good water resistance and chemical resistance. It is easy to realize the mechanization and automation of the coating industry and is suitable for complex shapes. The coating of parts with edges, corners and holes is widely used in the coating of hardware parts such as automobiles, automatic vehicles, electromechanical appliances, and home appliances.
